Perfect for all 3.0L-6.0L engine
Exhaust (Turbo Manifold) Flange T4 4 Bolt Flange
Exhaust (Downpipe) Flange V-Band Flange
Wastegate External Wastegate
Horse Power Boost Horse Power up to 600+ BHP
Turbo Height 243cm
Turbo Width 273cm
Compressor:
Trim:50
Inducer Diamter:69mm
Exducer Diamter:98 mm
A/R:0.66
Turbine:
Trim:78
Inducer Diamter:88mm
Exducer Diamter:77.5 mm
A/R:1.05
Oil Line: 10AN 550mm Turbo Oil Return Line Kit
Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: 2 Year warranty

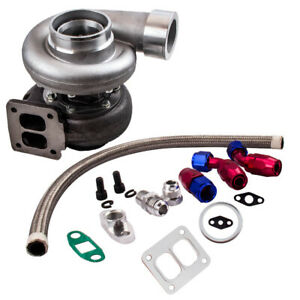

Accessories: You will get exactly as shown in the picture above ( Turbo + oil return line kit )
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
* This is universal application turbo, so modification might be required for some vehicles.
